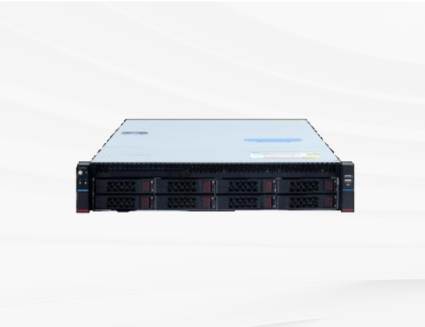

The mid-range 2U universal rack mounted server canprovide reliable, stable, and flexible solutions according to customers actual business needs. It is very suitable for customers in industries such as the Internet, information security, ISV, education, government, etc.
Product Highlights
Mass storage
50 2.5-inch hard drives or 24 3.5-inch hard drives, NVME business acceleration
Super Extended
15 PCIe expansion slots, support 4 dual-width GPU cards
Product Parameters
Model
R5210 G12
Hardware specifications
Number of processors
1/2
Processor model
Third generation Intel ® xeon ® Scalable series IceLake processor ≤ 270W
Memory slot
18 DDR4 DIMI slots, supporting up to DDR4-3200memory and supporting Aoteng memory
Number of hard drives
Rear: Supports 2Front end: Supports 8/12 3.5-inchhard drives or 24 2.5-inch hard drives SAS/SATA/NVMe hard drives
RAID support
Supports RAIDO, 1, 10, 5, 50, 6, 60, and supportssupercapacitors
PCle extension
Up to 6 PCle 4.0 expansion slots (4 X16+2 X8)
Network
On board dual gigabit electrical ports, availablewith various network cards such as 10G, 25G, 40G100G, etc
Power Supply
Optional 550W/800W1200W CRPS power supply.supporting 1+1 redundancy
Fan
4 hot swappable fans, supporting single fan failure
