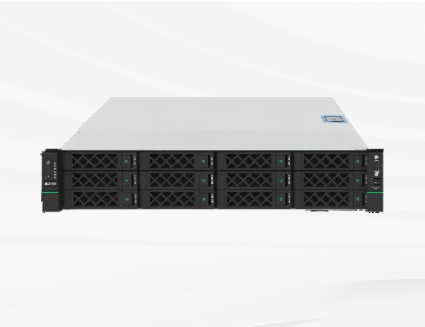

R5210 G13

Product Overview

2U mid end universal rack mounted server provides excellent configuration flexibility to meet the mid end configuration needs of the market. It has characteristics such as low power consumption, high reliability, and strong flexibility and scalability, and is suitable for customers in industries such as information security, ISV, education, and government.

Product Highlights

    Flexible storage

  • Front support NVMe full flash, rear support 4 pieces of multi-specification hard disk
  • Extend the upgrade

  • PCIe plug-in design, 8 PCIe slots can upgrade 5.0, support 2 double wide/4 single wide GPU

Product Parameters

Model R5210 G13
Hardware specifications
Number of processors 1/2
Processor model Fourth generation Intel ® xeon ® Scalable series SPRprocessor ≤ 300W
Memory slot 16 DDR5 DIMM slots, supporting up to DDR5-4800 memory and supporting Aoteng memory
Number of hard drives Front: Supports 8/12/24 3.5-inch/2.5-inch SAS/SATA/NVMe Post: Supports 4 SAS/SATA/NVMe or 4 E1. S
RAID support Supports RAID0, 1, 10, 5, 50, 6, 60, and supportssupercapacitors
PCle extension Up to 8 PCIe 4.0 expansion slots (expandable to supportPCIe 5.0)
Network By default, it supports 1 OCP network card and supports anadditional expansion of 1 OCP
Power Supply Optional 800W/1200W CRPS power supply, supporting1+1 redundancy
Fan 6 hot swappable fans, supporting single fan failure
working temperature 5℃-35℃
